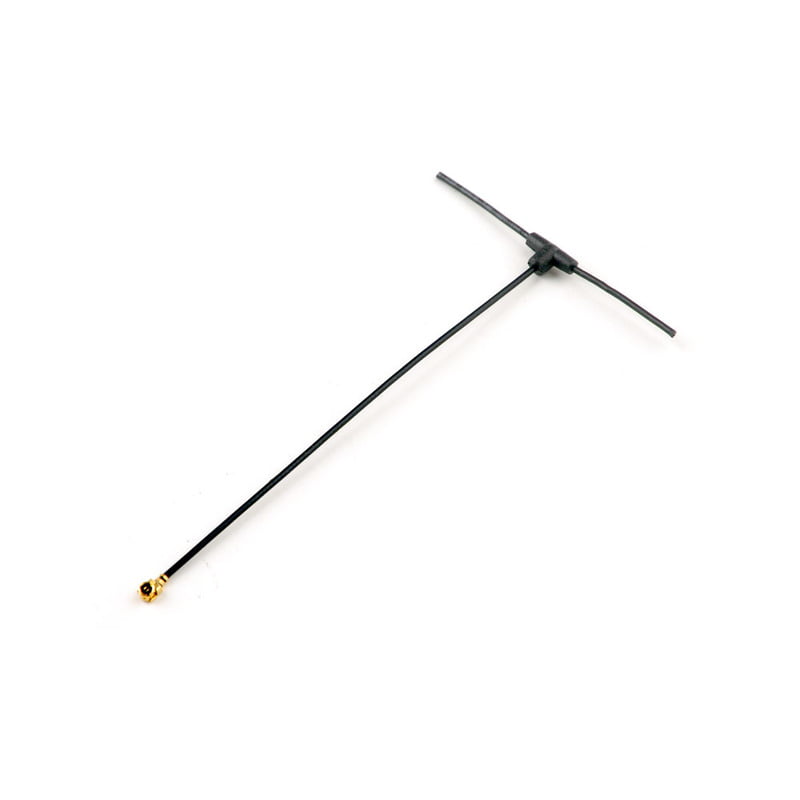

HAPPYMODEL 24RX90 ELRS EP1 RX Antenna
₹139.00 ₹199.00
Out of stock
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 25 × 5 cm |
| Main Brands | Happy Model |
Product Details
Frequency (MHz) 2400.0
Efficiency (dBi) -0.89
Gain (dBi) 2.23
Efficiency (%) 81.46
Directivity (dB) 5.12
Peak Gain Position (Theta) 180.00
Peak Gain Position (Phi) 330.00
Efficiency ThetaPol (%) 20.90
Efficiency PhiPol (%) 60.56
Upper Hem. Efficiency (%) 39.93
Lower Hem. Efficiency (%) 41.54
Connector IPEX/IPX/U.FL
Antenna width 52mm
Antenna length 90mm
Weight 0.56gram
Package includes - 1x HAPPYMODEL 24RX90 ELRS EP1 RX Antenna
